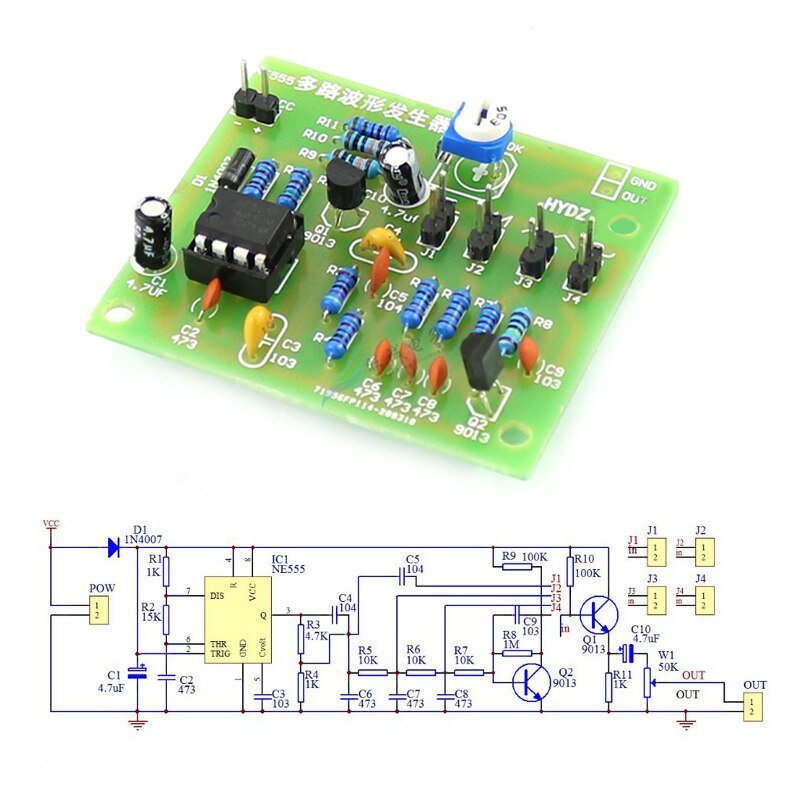

Signal Generator Specifications Define Their Essential Performance and Features

Imagine trying to build a skyscraper without ever looking at the blueprints. You might get a structure, but it wouldn't be safe, stable, or serve its intended purpose. In the world of electronics, Signal Generator Specifications are those essential blueprints. They don't just describe a device; they define its very capabilities, its precision, its reliability, and ultimately, its suitability for the incredibly diverse tasks engineers throw at it.
Understanding these specifications isn't just an academic exercise; it's the bedrock of effective testing, accurate measurement, and successful product development. Whether you're debugging a tiny embedded system or stress-testing a cutting-edge 5G component, the right signal generator — with precisely the right specs — makes all the difference. Get it wrong, and you're building blind. Get it right, and you unlock a world of precision and insight.

At a Glance: Key Takeaways on Signal Generator Specifications

Beyond Basic Functions: Specs detail far more than just "it makes a signal"; they describe how well it makes that signal across a range of conditions.
Application-Driven: The "best" specs depend entirely on your specific testing needs. A high-frequency RF device has vastly different requirements than an audio amplifier.
Frequency is King (Often): Frequency range, accuracy, and stability are paramount for many applications, defining the operational limits and signal purity.
Amplitude Matters: Output power, voltage range, and flatness across frequencies determine how robustly your signal can drive a device under test (DUT).
Modulation Unlocks Complexity: For modern communication and sensor emulation, look closely at modulation schemes (AM, FM, PM, I/Q) and internal/external modulation capabilities.
Arbitrary Waveforms Offer Flexibility: For custom or complex signals, specifications like sampling rate, vertical resolution, and memory depth are critical for arbitrary function generators (AFGs).
Spectral Purity is Crucial: Phase noise, spurious emissions, and harmonic distortion directly impact the quality and integrity of your test signal.
Format Influences Usability: Benchtop, USB, handheld, or modular formats each bring different practical advantages and limitations, which can impact how you leverage the underlying specs.

Why Specifications Matter: The Blueprint of Performance

A signal generator is an indispensable tool in any engineer's toolkit. It’s an electrical device designed to produce a variety of signals—from simple sine waves to incredibly complex modulated waveforms—which are then sent to a device under test (DUT) to simulate real-world conditions, diagnose issues, or verify performance. These signals can vary in waveform, amplitude, and frequency, and operators often adjust parameters like playback speed, offset, or add basic distortion and modulation.
But simply knowing a device "generates signals" tells you little about its true utility. That's where specifications come in. They are the objective, measurable parameters that dictate a signal generator's capabilities, limitations, and overall quality. Think of them as the DNA of the instrument, defining its genetic traits for accuracy, speed, and versatility. Without a thorough understanding of these specs, selecting the right tool for replicating sensor signals, creating high-speed serial data, or generating complex RF signals with digital modulation becomes a guessing game.

Understanding the Heart of a Signal Generator: Core Components and Their Specs

At its core, every signal generator, regardless of its specific type or complexity, relies on three fundamental components working in concert:

The Oscillator: The Source of Raw Energy

This is where the basic waveform originates, whether it's a raw sine, square, or triangle wave. The oscillator's job is to cover the required frequency range with a stable amplitude and frequency. Its specifications are fundamental:

Frequency Range: The minimum and maximum frequencies it can produce. This is often the first spec you check.
Frequency Stability: How much the output frequency drifts over time or with temperature changes. A highly stable oscillator ensures consistent, repeatable test conditions.
Spectral Purity: How free the raw signal is from unwanted components like harmonics (multiples of the fundamental frequency) and sub-harmonics. A clean oscillator output minimizes distortion in the final signal.

The Modulator: Shaping the Message

The modulator is responsible for applying information onto the raw signal. This could be simple amplitude, frequency, or phase modulation, or it could involve highly complex digital modulation schemes. Key modulator specifications include:

Modulation Types Supported: AM, FM, PM, FSK, PSK, QAM, OFDM – the list goes on. The types a generator supports dictate its use in various communication standards.
Modulation Bandwidth: The maximum frequency range over which the generator can accurately apply modulation. Critical for high-speed data transmission testing.
Modulation Depth/Deviation: The range over which the amplitude, frequency, or phase can be varied, influencing the strength of the modulated signal.

The Frequency Control Circuit: Precision and Consistency

This circuit is the brains behind the operation, precisely adjusting and maintaining the stability of the output frequency. It allows operators to dial in exact frequencies and ensures they stay put. Relevant specs include:

Frequency Accuracy: How close the actual output frequency is to the desired set frequency. Often expressed in parts per million (ppm) or parts per billion (ppb).
Frequency Resolution: The smallest incremental change you can make to the output frequency. Higher resolution means finer control.
Phase Lock Loop (PLL) Performance: For generators using PLLs, specs related to lock time, spurious content, and jitter are crucial for maintaining frequency and phase integrity.

The Diverse World of Signal Generators: Matching Type to Task

Signal generators come in many forms, each optimized for specific applications. Understanding the different types helps you narrow down which core specifications will be most critical for your work. For a broader exploration of the fundamental concepts behind these devices, consider diving into All about signal generation.

Function Generators: The Workhorses of General Electronics

These are your fundamental test tools, producing standard waveforms like sine, square, and triangle waves, often with pulse, ramp, and noise options. They're staples for basic circuit testing, design verification, and audio signal applications.

Key Specs: Frequency range (typically MHz range), amplitude range, basic modulation (AM, FM), waveform symmetry, and square wave rise/fall times.

Arbitrary Function Generators (AFG) / Arbitrary Waveform Generators (AWG): The Customizers

AFGs and AWGs are the creative powerhouses, capable of generating virtually any user-defined, custom-compiled waveform. They offer detailed control over signal characteristics and are essential for simulating unique sensor outputs or complex real-world phenomena.

Key Specs: High sampling rates (GS/s), vertical resolution (bits), waveform memory depth (points), and update rate are paramount for defining complex, high-fidelity custom signals.

RF Signal Generators: The Wireless World's Essential Tool

Specifically designed to generate radio frequency signals, these generators are critical for testing wireless communication devices, receivers, and RF components. They often provide robust analog modulation (AM, FM, PM).

Key Specs: High frequency range (GHz), spectral purity (low phase noise, low spurious), output power range, and modulation capabilities for various RF standards.

Vector Signal Generators (VSG) / RF Vector Signal Generators: Masters of Digital Modulation

VSGs are specialized for creating complex RF signals that incorporate both analog and sophisticated digital modulation schemes like QAM, QPSK, FSK, BPSK, and OFDM. They achieve this by independently controlling the in-phase (I) and quadrature (Q) components of the signal.

Key Specs: High vector modulation bandwidth, error vector magnitude (EVM), adjacent channel power ratio (ACPR), I/Q impairment compensation, and waveform memory are crucial for advanced digital communication system testing and receiver sensitivity.

Audio Signal Generators: The Sound Engineers' Friend

These devices produce audible signals within the human hearing range (typically 20 Hz to 20 kHz), used for testing audio systems, measuring distortion, and analyzing frequency response of speakers, amplifiers, and microphones.

Key Specs: Low total harmonic distortion (THD), wide frequency range within the audio spectrum, flat frequency response, and variable output impedance.

Video Signal Generators: For the Visual Realm

Video signal generators produce high-quality video outputs, including essential sync signals for proper timing and display on screens. They are used for testing displays, video processing equipment, and broadcast systems.

Key Specs: Supported video standards (HDMI, DisplayPort, SDI), resolution, frame rates, color depth, and sync signal timing accuracy.

Pulse Generators: The Digital Signal Simulators

As their name suggests, these generate pulses with adjustable widths, rise/fall times, and frequencies. They are invaluable for simulating digital signals, testing power electronics, radar systems, and even medical devices.

Key Specs: Pulse width range, rise/fall times, repetition rate (frequency), jitter, and amplitude.

Decoding Key Signal Generator Specifications

Now, let's dive deeper into the individual specifications you'll encounter and why each is important.

Frequency Range: The Breadth of Operation

This specification defines the minimum and maximum frequencies a generator can produce. It's often the first filter in your selection process. If you need to test a 2.4 GHz Wi-Fi device, a generator maxing out at 1 GHz won't cut it. Similarly, if you're working with sub-Hz sensor signals, a high-frequency RF generator might lack the low-end fidelity.
Look beyond just the raw numbers:

Resolution: The smallest step size you can adjust the frequency by. Higher resolution (e.g., Hz or mHz steps) allows for more precise tuning.
Accuracy: How close the actual output frequency is to the displayed or programmed frequency. This is typically specified in parts per million (ppm) or even parts per billion (ppb) and is critical for applications like crystal oscillator testing or precise timing.
Stability: How well the frequency holds its value over time and changes in temperature. Good stability is vital for long-duration tests or highly sensitive measurements where drift can invalidate results.

Amplitude Range & Output Power: The Signal's Strength

These specs tell you how "loud" or "strong" your signal can be and how consistently it can deliver that power.

Maximum/Minimum Output Power: Specifies the highest and lowest power levels the generator can deliver, often expressed in dBm (decibels relative to 1 milliwatt) or Volts peak-to-peak (Vpp). This needs to match the input requirements of your DUT.
Output Power Accuracy/Level Flatness: How accurately the generator sets the output power, and how consistently that power is maintained across its entire frequency range. A "flat" response means the power doesn't drop off significantly at higher or lower frequencies, ensuring consistent stimulus.
Impedance: Typically 50 Ohms or 75 Ohms. This must match the impedance of your DUT and connecting cables to avoid signal reflections and power loss.

Modulation Capabilities: Adding Information to the Signal

Modern electronics rarely deal with pure, unmodulated signals. Modulation is how data or information is encoded onto a carrier wave.

Analog Modulation (AM, FM, PM): Specifies the generator's ability to vary amplitude, frequency, or phase in an analog fashion. Critical for older radio systems, sensor emulation, and basic communication.
Digital Modulation (QAM, QPSK, FSK, BPSK, OFDM): Essential for current wireless communication standards (Wi-Fi, Bluetooth, LTE, 5G). VSGs excel here, providing complex I/Q modulation with advanced encoding schemes.
Internal vs. External Modulation: Does the generator have built-in capabilities to create modulation signals, or does it require an external source? Internal modulation offers convenience; external offers maximum flexibility.
Modulation Bandwidth: For complex digital modulation, this dictates the maximum symbol rate or data rate the generator can effectively handle.

Waveform Format & Characteristics: The Signal's Shape

Beyond simple sine waves, the shape and quality of the signal are defined by these specs.

Supported Waveforms: Sine, Square, Triangle, Ramp, Pulse, Noise, Arbitrary. Ensure the generator supports the specific shapes you need.
Harmonic Distortion (THD): For sine waves, this measures the presence of unwanted multiples of the fundamental frequency, indicating signal purity. Lower THD is better for audio and sensitive analog measurements.
Square Wave Rise/Fall Times: How quickly the square wave transitions between high and low states. Crucial for digital logic testing and clock generation. Faster times are generally better for high-speed digital circuits.
Pulse Width/Duty Cycle: For pulse generators, defining the duration of the pulse and the ratio of "on" time to total cycle time.

Spectral Purity & Noise: The Quietness of the Signal

An ideal signal generator would produce a perfect signal without any unwanted noise or spurious components. In reality, every generator has limitations.

Phase Noise: Random fluctuations in the phase of a signal, appearing as "skirts" around the carrier frequency on a spectrum analyzer. Low phase noise is critical for high-speed digital communications, radar, and precise timing applications, as it can degrade signal integrity and increase bit error rates.
Spurious Emissions (Spurs): Discrete, unwanted frequencies generated by the instrument, often unrelated to the desired signal or its harmonics. These can interfere with sensitive measurements or corrupt the DUT's operation. Lower spur levels are always desirable.
Harmonics: Integer multiples of the fundamental frequency. While sometimes intentionally introduced, unwanted harmonics indicate distortion.

Sweep and Burst Functions: Dynamic Testing Capabilities

These features allow the generator to change its output dynamically.

Frequency Sweep: The ability to automatically vary the output frequency over a defined range and time, useful for characterizing filters, amplifiers, or antenna responses. Specs include sweep range, speed, and linearity.
Amplitude Sweep: Similar to frequency sweep, but varies the output amplitude.
Burst Mode: Produces a specific number of cycles of a waveform for a set duration, then stops. Useful for simulating pulsed signals, radar, or short data packets. Specs include burst count, trigger source, and repetition rate.

Triggering Options: Synchronization and Control

Triggers enable precise timing and synchronization of the signal generator's output with other test equipment or events in your DUT.

Internal Trigger: Uses a timer within the generator to initiate a waveform or burst.
External Trigger: Uses an external signal (e.g., from your DUT or an oscilloscope) to start the generator's output.
Manual Trigger: Initiated by the user pressing a button.
Gating: Allows the signal to pass through only when an external gate signal is active, providing fine control over signal duration.

Waveform Memory: Storing Complex Signals

For AFGs and AWGs, this specifies how much data the generator can store for arbitrary waveforms.

Memory Depth: The number of data points (samples) that can be stored to define a custom waveform. Deeper memory allows for longer, more complex, or higher-resolution arbitrary waveforms without repetition.
Waveform Update Rate: How quickly the generator can produce new samples from memory.

Sampling Rate & Vertical Resolution (for AFG/AWG): The Detail of Arbitrary Waves

These are paramount for arbitrary waveform generators.

Sampling Rate (GS/s): How many data points per second the generator can output. A higher sampling rate allows for the creation of higher frequency arbitrary waveforms with greater fidelity and less aliasing.
Vertical Resolution (bits): The number of bits used to define the amplitude of each sample point. Higher bit resolution (e.g., 14-bit or 16-bit) means finer amplitude steps and a more accurate, less "steppy" representation of the analog waveform. This is crucial for signals requiring high dynamic range or low distortion.

Beyond the Numbers: Practical Considerations for Choosing a Signal Generator

While specifications lay out the raw capabilities, practical factors influence which generator is truly right for you.

Application Requirements: The Ultimate Driver

Your application dictates everything. Are you:

Testing audio equipment (low THD, audio frequency range)?
Developing next-gen wireless communication (high frequency, complex digital modulation, low phase noise)?
Simulating sensor outputs for an embedded system (arbitrary waveforms, specific amplitude range)?
Troubleshooting digital logic boards (fast rise/fall times, pulse capabilities)?
Define your absolute minimum requirements first, then consider desirable enhancements. Don't overspend on specs you'll never use, but don't under-spec either, as that leads to inaccurate testing or early obsolescence.

Budget & Future-Proofing: Balancing Cost and Longevity

High-performance specs often come with a higher price tag. Consider your current budget, but also think about your needs 3-5 years down the line. Can you afford a generator that has some headroom for future projects? Sometimes, investing a bit more upfront saves significant costs later by avoiding the need to purchase a completely new instrument.

Ease of Use & Software Integration: The Human Factor

Even the most powerful generator is only as good as its usability.

User Interface: Is it intuitive? Does it have a clear display and logical controls?
Programmability: For automated test setups, look for standard interfaces like USB, Ethernet, or GPIB, and ensure there are robust programming APIs (e.g., SCPI commands, IVI drivers) for integration with software like LabVIEW, Python, or MATLAB.
Software Ecosystem: Does the manufacturer provide useful software for waveform creation, instrument control, or data analysis?

Physical Format: Where and How You Work

Signal generators come in various physical forms, each with its own advantages:

Benchtop: Standalone, high-precision instruments ideal for lab environments. They often offer the widest range of features and best performance.
USB-Based: Compact, PC-controlled devices that leverage your computer's processing power and display. Excellent for portability and budget-conscious setups.
Handheld: Battery-powered, ultra-portable for field service, remote debugging, or education. Often have more limited specs but prioritize mobility.
Modular/PXI: Designed to be integrated into automated test systems, offering high channel density and synchronization capabilities within a chassis. Ideal for manufacturing test lines.
Software-Defined: Highly flexible and programmable, relying heavily on digital signal processing (DSP) and often utilizing general-purpose hardware. These are particularly adaptable to evolving standards and research.
The choice of format depends heavily on your application, portability needs, existing device compatibility, and budget.

Common Questions & Misconceptions About Signal Generator Specs

Let's clear up a few common points of confusion.
"Higher numbers are always better, right?"
Not necessarily. While higher frequency ranges or deeper memory seem universally good, they often come with increased cost and complexity. For instance, an incredibly low phase noise might be critical for a radar application but entirely overkill (and expensive) for testing an audio amplifier. Always match the specs to the actual demands of your application.
"Can I use a function generator for RF testing?"
While some function generators might reach low RF frequencies (e.g., tens of MHz), they typically lack the spectral purity, output power, and modulation capabilities required for serious RF testing. You'd quickly run into issues with excessive phase noise, harmonics, and poor modulation accuracy, leading to unreliable test results. Dedicated RF signal generators are engineered specifically for the challenges of radio frequencies.
"What's the difference between frequency accuracy and frequency stability?"

Accuracy refers to how close the output frequency is to its absolute target value at a given moment. Think of it as hitting the bullseye.
Stability refers to how well the frequency maintains that value over time and environmental changes (like temperature). Think of it as holding steady on the bullseye without drifting.
A highly accurate generator might not be stable if its frequency drifts significantly, and a stable generator might not be accurate if its output is consistently off from the target, even if it holds that incorrect value perfectly. Both are crucial, but for different aspects of performance.
"Do I always need arbitrary waveform capabilities?"
Only if you need to create custom, non-standard waveforms that don't fit the predefined shapes (sine, square, triangle, etc.) or standard modulation schemes. For basic circuit testing or standard communication protocols, a function generator or a specialized RF generator might be perfectly sufficient and more cost-effective. AFGs/AWGs shine when you need to emulate highly specific sensor outputs, generate complex data streams, or simulate real-world impairments.

Making an Informed Choice: Your Next Steps in Selecting a Signal Generator

Choosing a signal generator isn't about finding the single "best" device; it's about finding the right device for your unique challenges. Start by rigorously defining your application's requirements:

What frequencies do you need to cover?
What amplitude/power levels are necessary for your DUT?
What waveforms (standard, pulse, arbitrary) must it produce?
Do you need modulation, and if so, what types and bandwidths?
What level of signal purity (phase noise, harmonics) is critical for your measurements?
What budget are you working with, and what's your long-term outlook?
Armed with this clear understanding, you can then navigate the intricate world of Signal Generator Specifications with confidence. Evaluate the data sheets, compare key performance indicators, and don't hesitate to seek demonstrations or talk to application engineers. The right signal generator isn't just a tool; it's a strategic investment that empowers you to innovate, troubleshoot, and achieve precise results every time.
